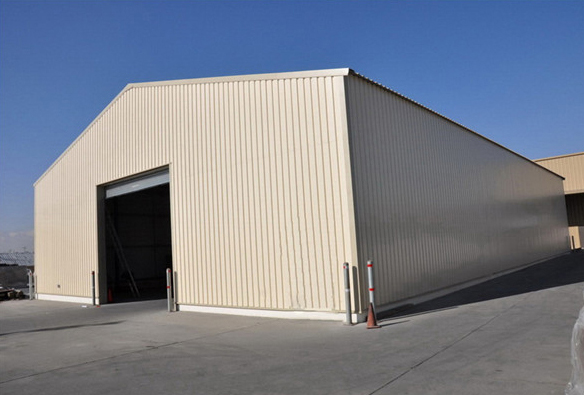

Steel Structure Workshop

The Steel Structure Workshop, built with advanced portal frame design, is a cornerstone of modern industrial architecture.  Renowned for its durability, cost-effectiveness, and adaptability, this structure is ideal for manufacturing plants, warehouses, logistics hubs, and more.  Below, we explore its key technical features and applications.

Superior Wind Resistance

Designed to endure harsh environmental conditions, the portal frame steel workshop boasts exceptional wind resistance strength.  The framework incorporates rigid joints, diagonal bracing, and high-grade steel materials, ensuring stability in wind speeds up to 150 km/h (depending on regional standards).  Roof and wall cladding are securely fastened to prevent uplift, while aerodynamic profiles minimize wind load impact, complying with international codes like ASCE 7 or Eurocode 1.

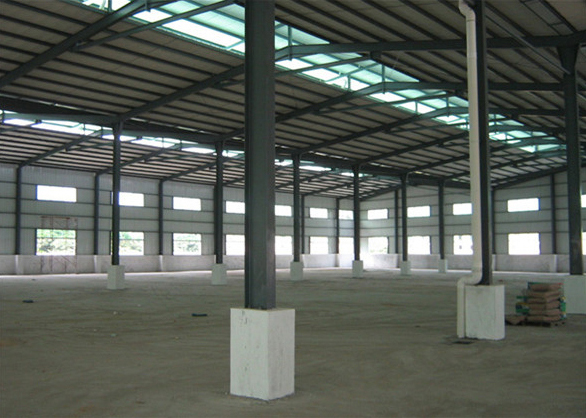

Large-Span Capabilities

One of the hallmarks of the portal frame design is its ability to achieve wide clear spans (typically 30–60 meters) without internal columns.  This maximizes usable floor space, accommodating heavy machinery, production lines, or bulk storage.  The prefabricated steel components allow for precise engineering, ensuring structural integrity even in ultra-long spans.

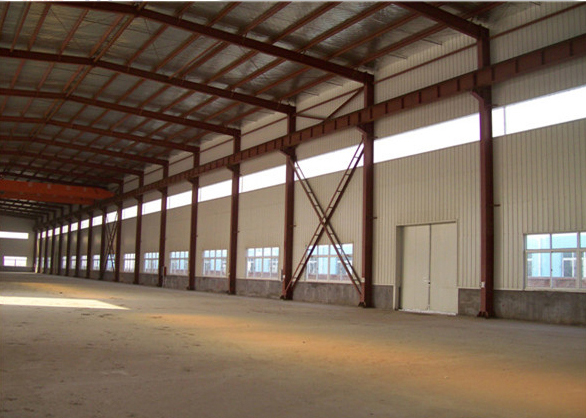

Customized Crane Systems

Steel Structure Workshops seamlessly integrate overhead cranes or gantry cranes to streamline material handling.  The steel framework is reinforced with crane beams, runway girders, and robust connections to support lifting capacities ranging from 5 to 50+ tons.  Engineers optimize column spacing and foundation design to handle dynamic loads, ensuring safety and operational efficiency.

Diverse Industrial Applications

Manufacturing: Spacious layouts for assembly lines and machinery.

Warehousing: Column-free interiors for high-density storage.

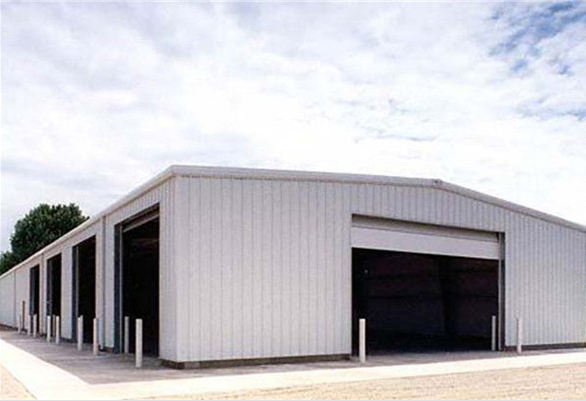

Logistics: Easy access for loading/unloading with large doors.

Aviation/Vehicle Maintenance: High ceilings for aircraft or truck servicing.

Sustainability and Cost Benefits

Steel structures are eco-friendly, with recyclable materials and energy-efficient insulation options.  Their prefabricated components reduce construction time by 30–40%, lowering labor costs and minimizing disruptions.
