Product Introduction
 |  |  |

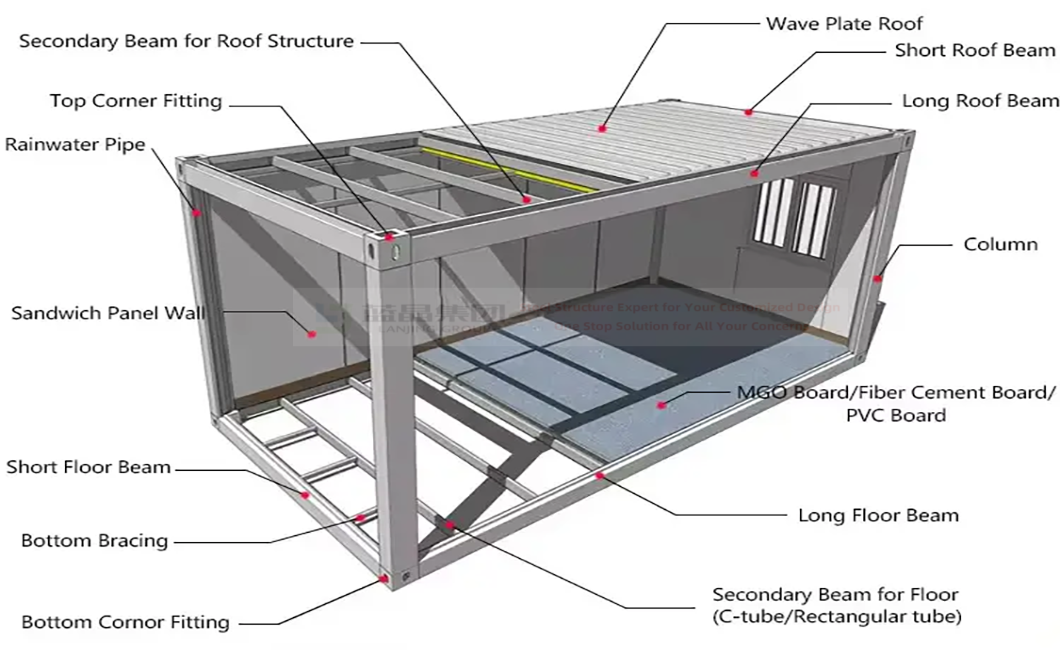

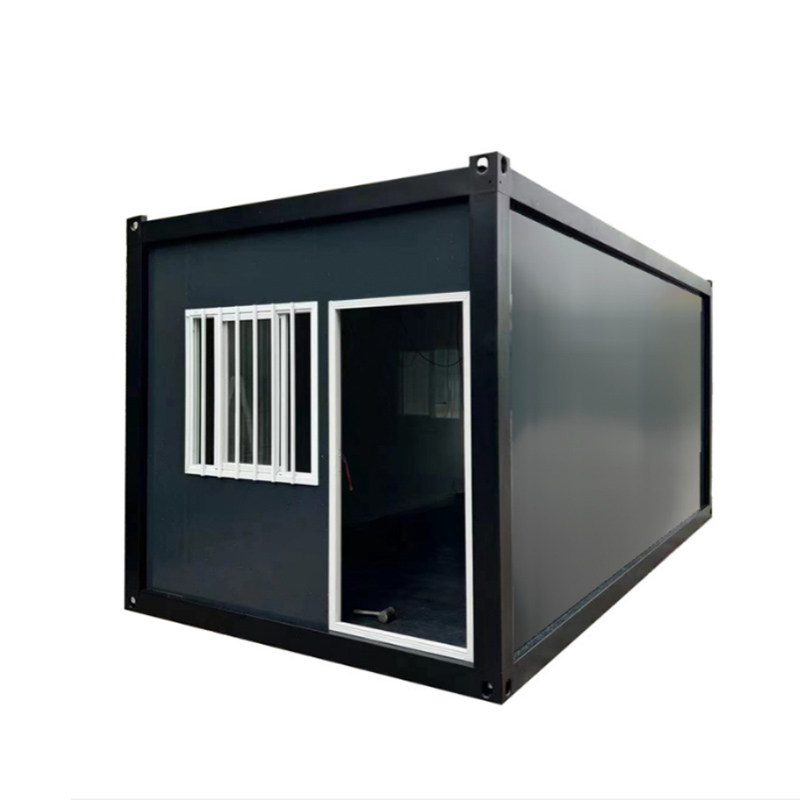

Lanjing flat pack container is the modular industrial prefabricated system, comprising Roof, Floor, Pillars and Wall panels (with doors/windows). Lanjing flat pack container's dimension conform to ISO shipping container (20ft), the Roof Floor is prefabricated ready in Lanjing factory. While it's transportation, Lanjing will take the "ALL IN ONE PACKAGE" solutions, which means all the components of one modular container house will be packed in one Flat pack, including 1 Roof, 1 Floor, 4 Pillars, All wall panels (including doors windows) and all the other related accessories.

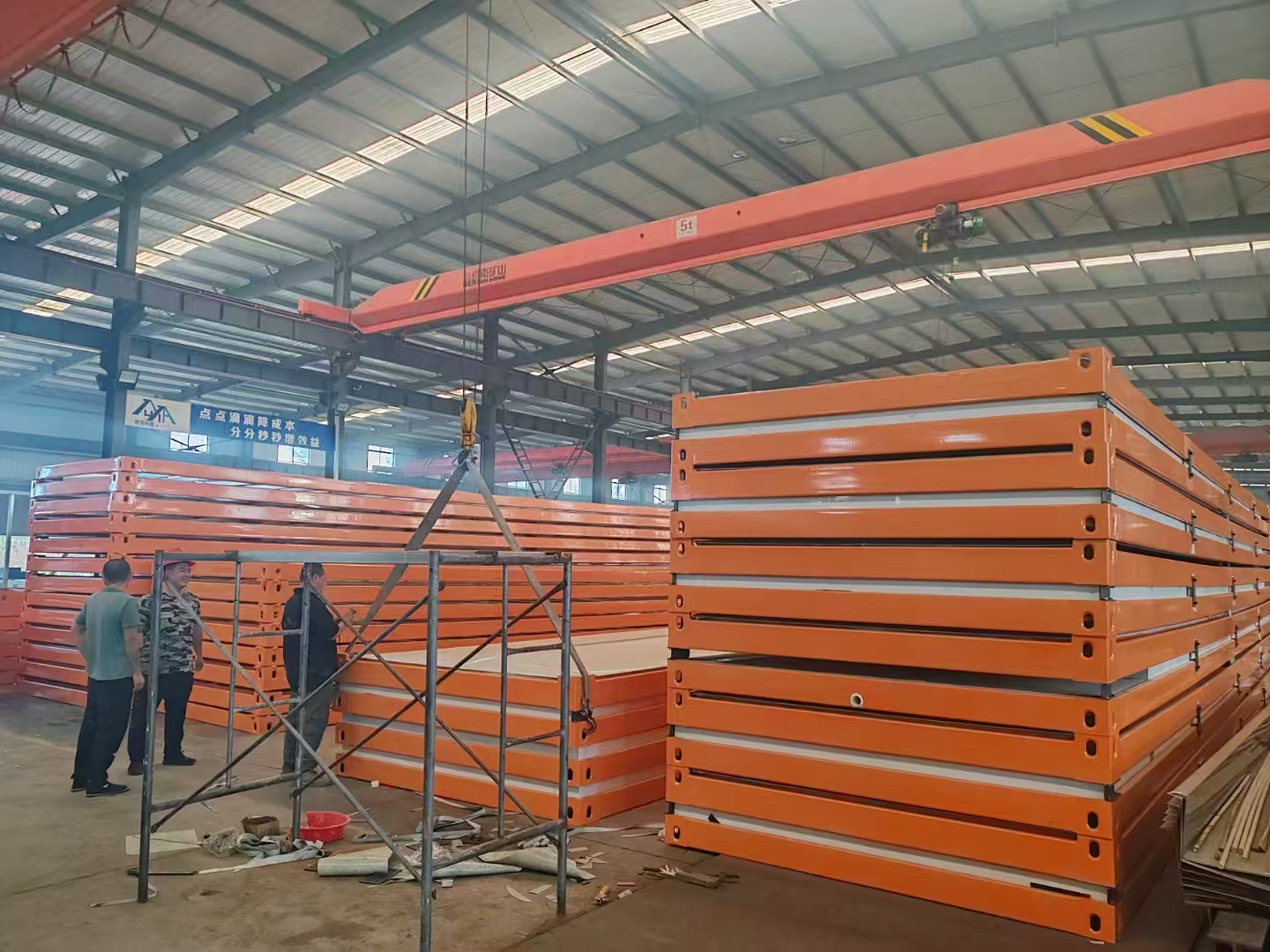

4 pcs Flat pack units could be combined as one bundle, and the dimension is same as ISO shipping container, with ISO standard corner casts, are easy for transportation and crane lifts during the shipment.

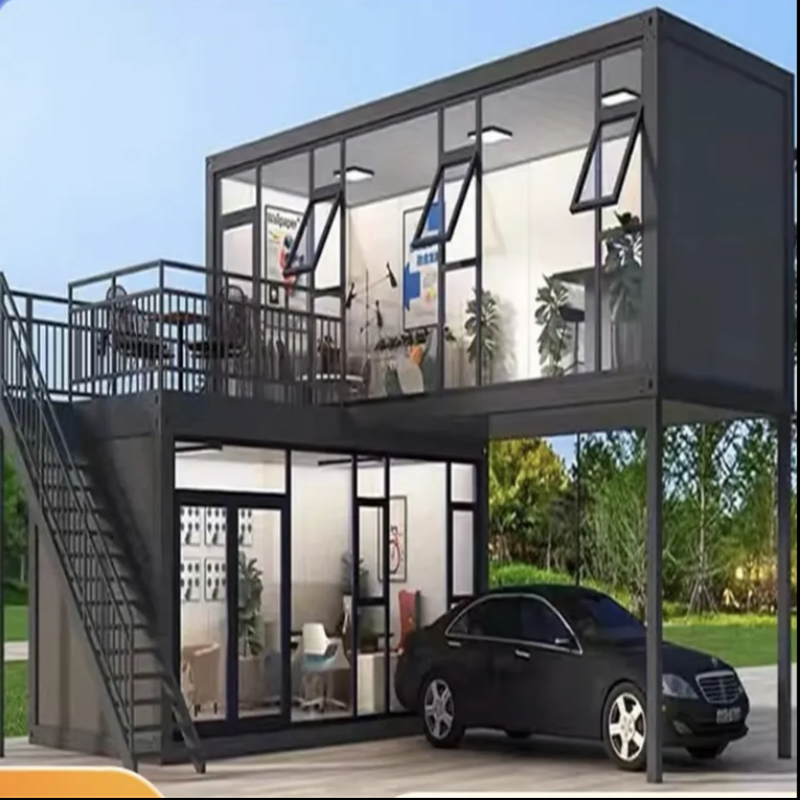

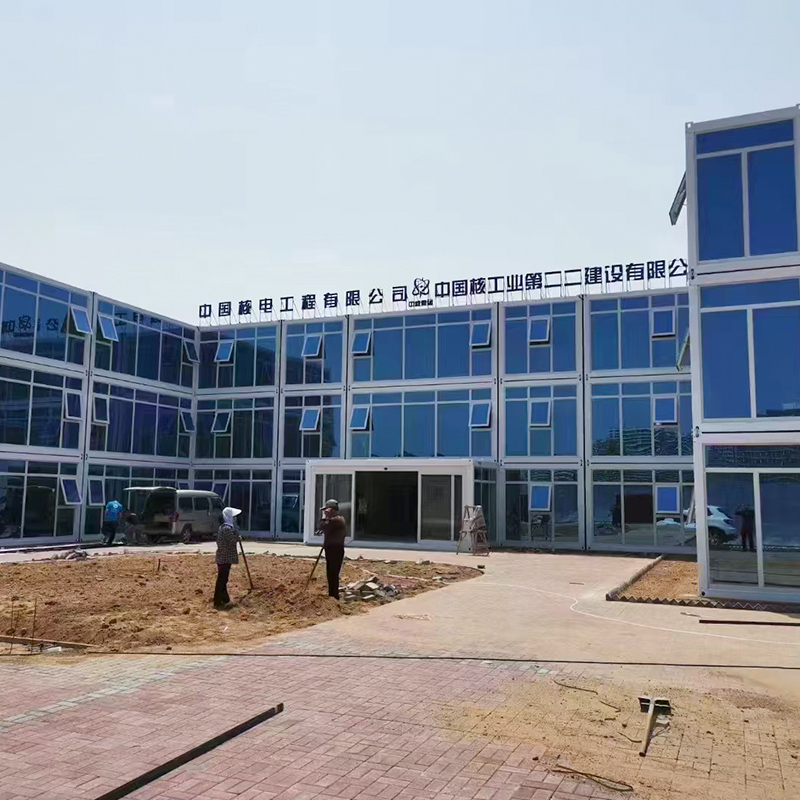

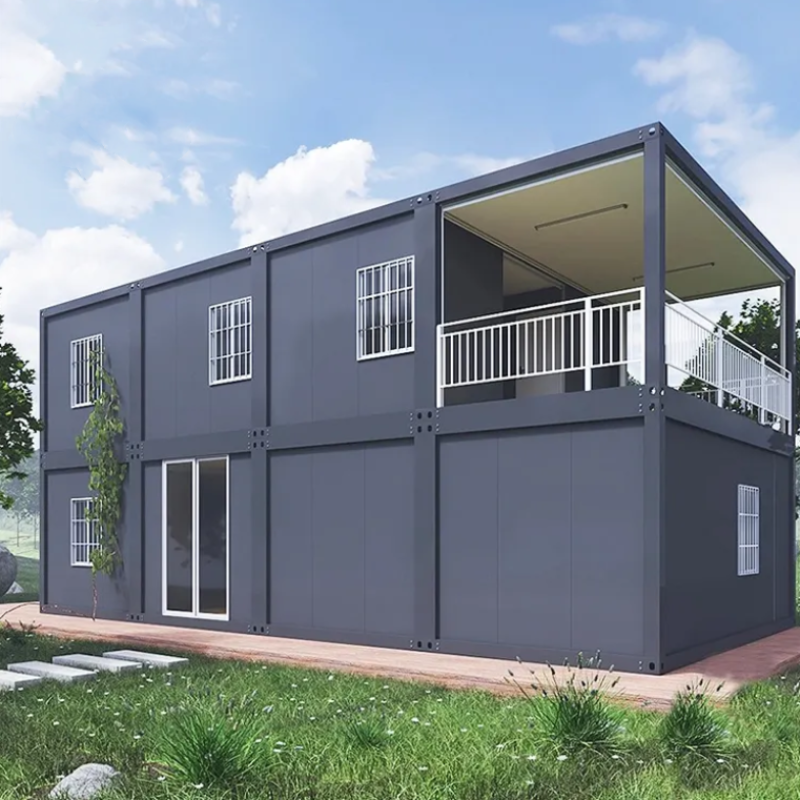

Further to the Flat pack transportation solutions, the flat pack container house could be loaded in to 40ft HQ shipping containers, which quantity will be 6 units per 40ft HQ shipping container. Lanjing Flat pack container house system could be combined in both horizontal and vertical, also could be stacked up to Max. 3 floors, to make more large space for multi-purpose usage.
 |  |

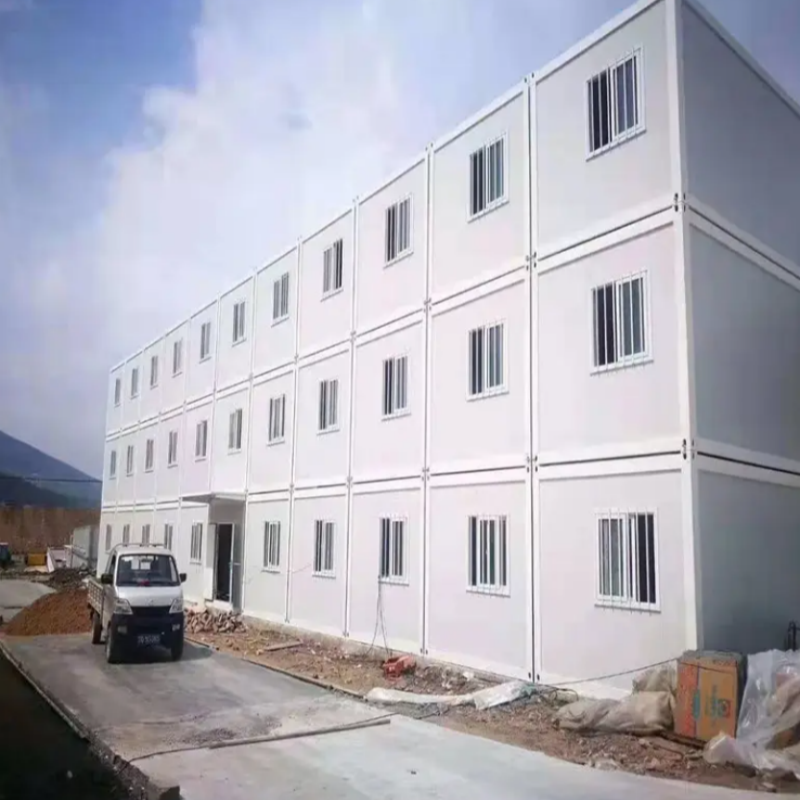

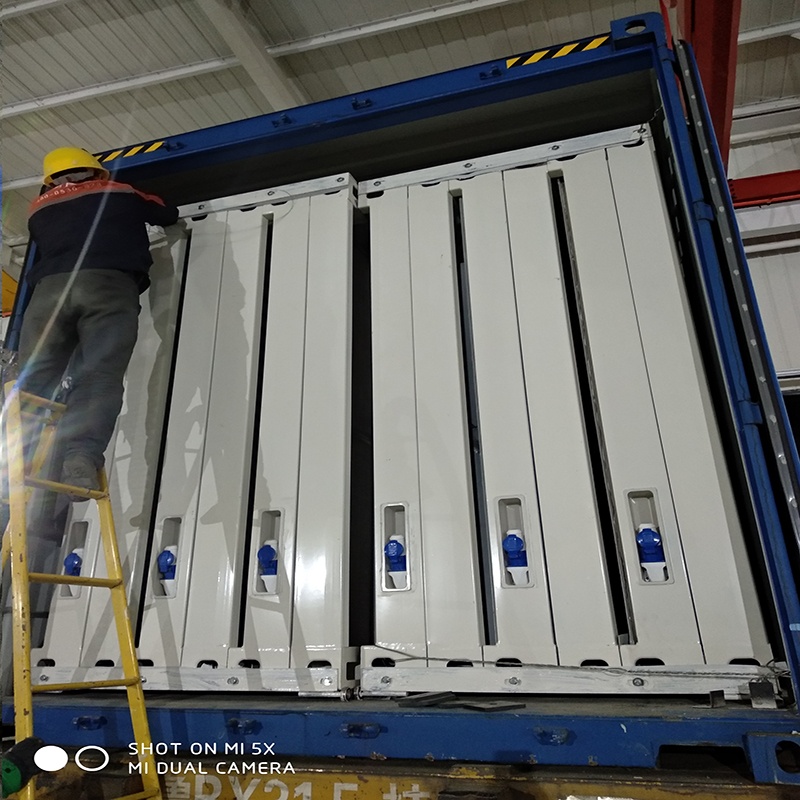

| 1Pc 40ft HQ shipping container could load 6units | Max. up to 3 Floors |
Product Advantage
 |  | 1. The housing is easy to transport, especially the modular packaging saves transportation costs. 2. Made from lightweight yet durable materials，Wind and water-tight，Either galvanized or powder coated 3. Modular (i.e. can be linked together)，Versatile, suitable for use in any location 4. A lot of space combinations and up to 3 stories high. Such as conference rooms, dorms, kitchens, bathrooms and so on. 5. Arrived as a flat pack package - complete with everything you require to get it up-and-running. There's no need for any specialist tools or machinery,. Each panel is light enough to lift. They can simply be carried to their desired position and constructed - by hand - in less than an hour. |
 |  |
Technical Parameters
| Dimension | 6055*2435*2896mm |
| Roof main frame | 2.0~4mm thickness, SGH340, Galv. with electrostatic spraying |
| Roof sub-frame | C90&Sq. 25, 1.2~2.0mm thickness, Galv. with electrostatic spraying |
| Floor main frame | 2.0~4mm thickness, SGH340, Galv. with electrostatic spraying |
| Floor sub-frame | C120, 1.8~3.0mm thickness, Galv. with electrostatic spraying |
| Corner pillar | 3.0mm thickness, SGH340, Galv. with electrostatic spraying |
| Lift corner piece | 6mm thickness corner cast |
| Roof covering plate | 0.5mm thickness galv. Metal steel sheet |
| Roof insulation | 100mm thickness fiberglass with aluminum foil, density=12kg/m3 |
| Roof suspended ceiling | 0.4mm galv. Metal sheet |
| loor bottom covering plate | 0.5mm thickness galv. Metal steel sheet |
| Floor insulation | 100mm thickness fiberglass with aluminum foil, density=12kg/m3 |
| Floor board | 18mm thickness fiber cement plate |
| PVC flooring | 2mm thickness heavy-duty vinyl leather |
| Wall panel | 50mm/75mm thickness fiberglass/rockwool insulated sandwich panel |
| Door | Special Steel Door for Container house (840*2030mm) with locker |
| Window | PVC sliding window with mosquito screen &security fence |
| Electrical System | Including PDB/industrial plug/socket/switch/lamp |
| Rain drainage pipe | ¢50mm PVC pipe |
| customized service and personalized design are welcomed！！ | |
Product Uses

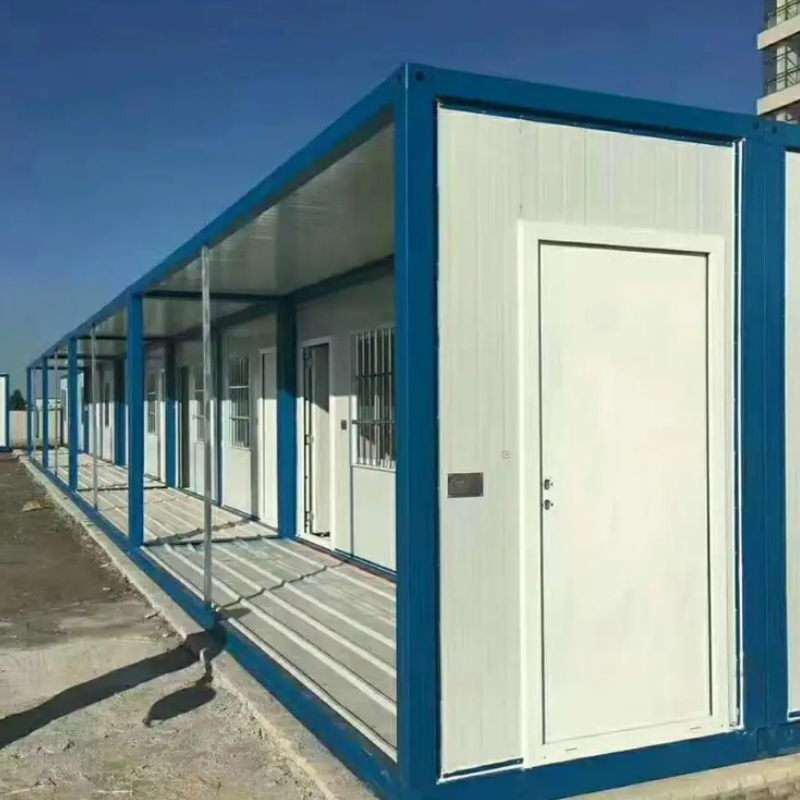

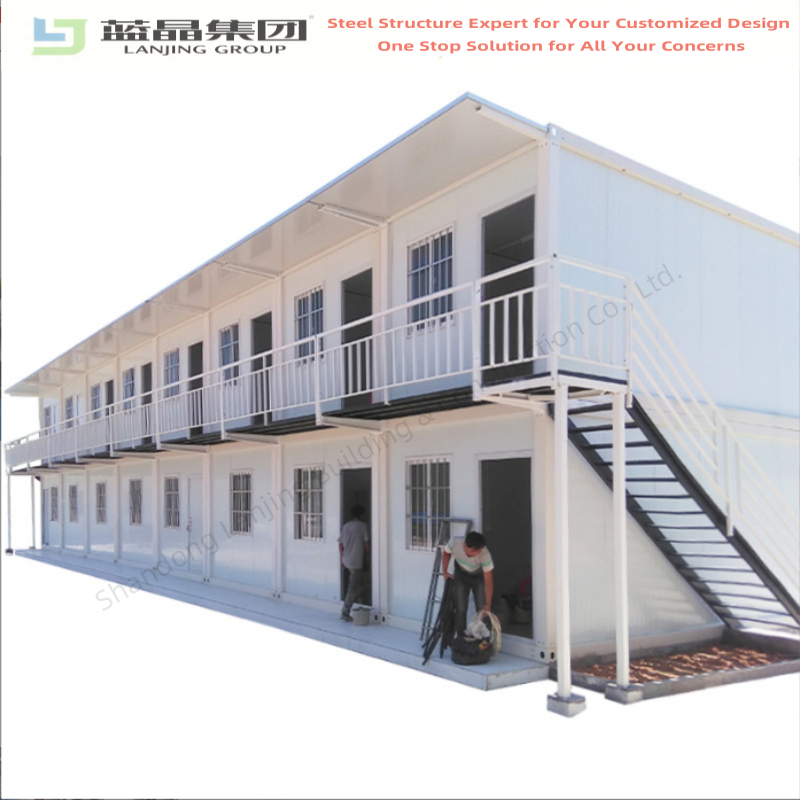

The flat pack congtainers are a kind of modular building,they have a lot of space combinations and up to 3 stories high. 1.As office building: Can be placed separately and used as an office where needed 2.workers dormitories:Different combinations can be used as dormitories on request 3.family home:The combination is flexible and can be arranged according to family needs 4.storage room:Flexible placement, can be used as storage flat pack container house has a variety of uses, such as hospitals,warehousing,classroom,public toilet,cafe, street police station,small shop,gas station etc. |  |  |
 |  |
FAQ
Q1: Can we accept the custom service and personalized design?
A: Yes, our professional engineer team can make a drawing by following clients' requirement.
Q2: How to install?
A: It is easy and fast assemble. We will provide detailed installation video and instruction to you. Technicians will be sent to help you on site if necessary. However, the visa fee, tickets, accommodation, food and wages will be under taken by buyers.
Q3:How can we trust your quality?
A:Firstly, we can send sample to you;Secondly,we can provide you our products certification report;
Thirdly, We have a lot of reliable long-term partners.Finally, Welcome to visit our factory!
