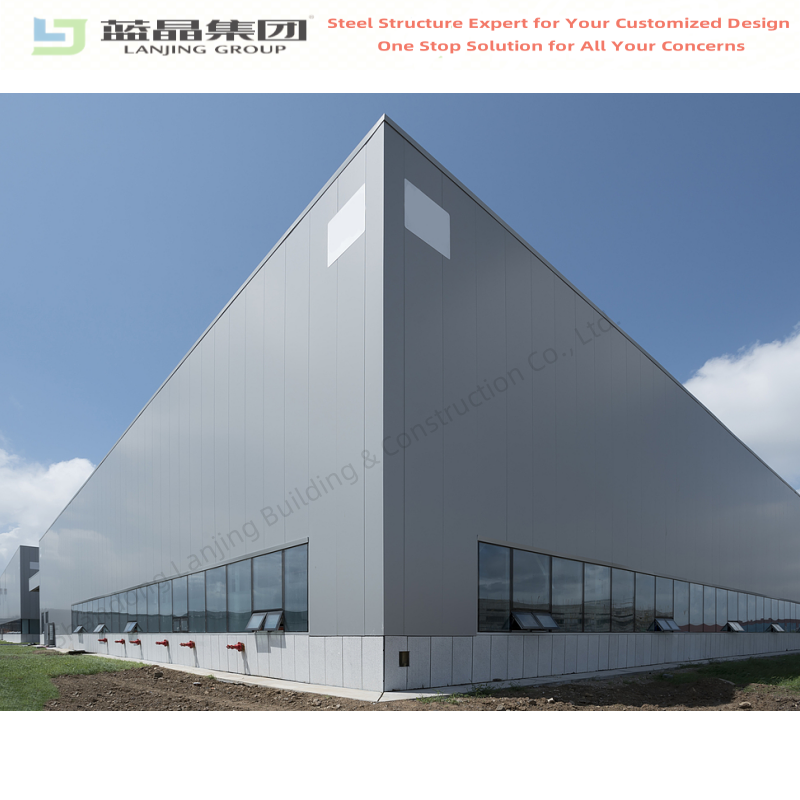

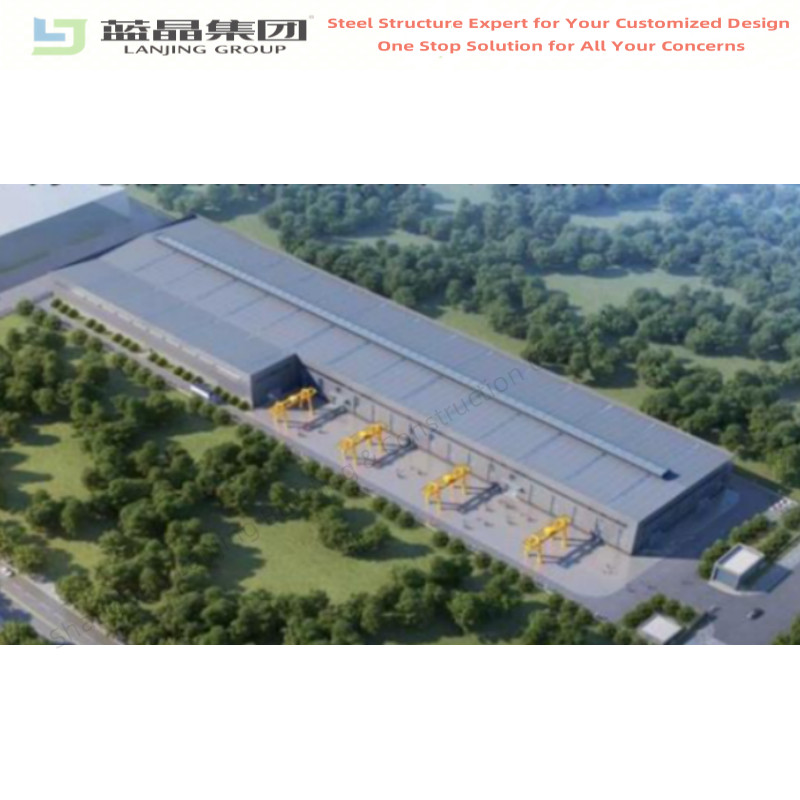

Fast Assemble Modern Design Professional Manufactured Steel Structure

Compared with traditional buildings, steel structure building is a new building structure— the entire building made of steel. The structure mainly comprises steel beams, columns, trusses, and other parts made of section steel and steel plates. It is connected between parts and parts by welding, bolts, and rivets. The lightweight and simple structures are widely used in large factories,stadiums, super high-rise buildings, and other fields. The type of steel building structure includes the portal rigid steel frame, frame structure, truss structure, and grid structure.

Availability:



Get A Quote

Product Description

Item	Popular size	Popular height	Coverage	Gate size
steel warehouse	20x30m	5m	signle corrugated steel sheet	4x4.5m
steel workshop	20x50m	6m	insulation roof with single steel sheet wall	4.5x5m
Farm storage	16x36m	4m	single steel sheet or only roof	4x3.5m

结构分解图2

Basic Information

Clear span:(width)	6~50m without middle column
Height	2~20m
Length	as your requirement
Material Grade	Q345(S355JR)or Q235(S235JR) steel or as request
Column & Rafter	Welded or Hot rolled H beam
Tie beam	round pipe or square tube or as request
X brace	round steel bar, angle steel or as request
Purlin	C purlin, Z purlin,thickness 2.0mm,2.2mm,2.5mm,3.0mm
sag rod	steel round bar, angle, C purlin etc
Wall & Roof coverage	single corrugated steel sheet (0.12~1.2mm)
	EPS, Rock wool, glass fiber ,PU core foam sandwich Panel
	(Thickness:50mm,75mm,100mm,150mm,200mm)
Gate	Electric roller shutter door/Sliding door
Exit Door	Plastic steel/Aluminum alloy swing door/ steel swing door
Window	Plastic steel or Aluminum alloy frame
Window	sliding window/ vent/top Hung window
Surface	Shot blasting with anti rust paint rich-zinc epoxy paint etc
Surface	hot dip galvanize
Quality Control	The third party ,SGS, QIMA, BV all accept
Crane	5MT, 10MT, 15MT, etc.

bz1 zx1 zx2 zx3
