Basic Information
| I >>Main Steel Structure | ||||

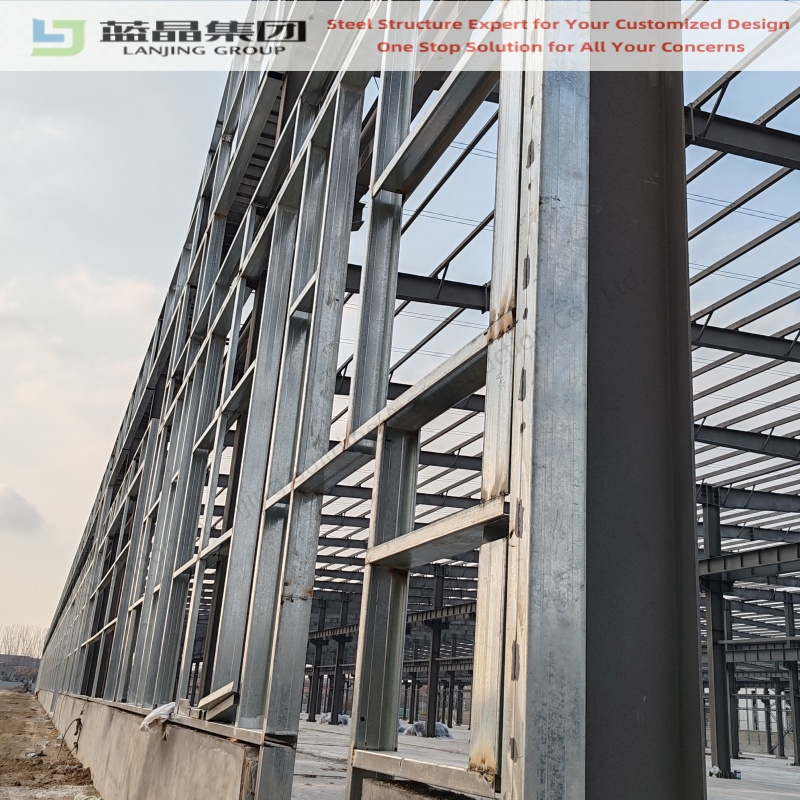

| 1 | Column / Pillar/ Post | Welded H steel section | Q235B/Q355B | Painting/Hot-dip galvanized |
| 2 | Beam/ Roof truss | Welded H steel section | Q235B/Q355B | Painting/Hot-dip galvanized |
| II >> Sub-steel Structure | ||||
| 1 | Wall/Roof purlin | C/Z steel | Q235B | Galvanized |
| 2 | Tie rod | ∅89/114/158mm | Q235B | Painting/Hot-dip galvanized |
| 3 | Flexible Bracing | ∅16/18/20mm | Q235B | Painting/Hot-dip galvanized |
| 4 | Sag rod (straight/inclined） | ∅12 steel bar | Q235B | Galvanized |
| 5 | Brace Rod | ∅35*2.5mm | Q235B | Galvanized |
| 6 | Knee-brace | L50*4.0mm | Q235B | Galvanized |
| III >> Roof & Wall | ||||
| 1 | Roof /Wall panel | Steel sheet/Metal sheet | 0.326~0.8mm corrugated steel sheet | |
| Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulation | |||
| 2 | Roof/Wall trimmings | Ridge roof panel | 0.4~0.5 mm steel sheet | |
| Flashing | 0.4~0.5 mm steel sheet | |||
| Gable wall trimming | 0.4~0.5 mm steel sheet | |||
| Wall corner trimming | 0.4~0.5 mm steel sheet | |||
| IV >> Window & Door | ||||
| 1 | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |
| 2 | Door | Roll up door /sliding door | Automatic and manual method | |
| V >> Accessories | ||||
| 1 | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||
| 2 | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||
| 3 | Downpipe | PVC 110/160 | ||
| 4 | Roof Ventilator | ∅600 (Galvanized) | ||
| 5 | Floor Plate (Mezzanine) | Galvanized floor decking / 18~20mm Cement board | ||
FAQ
1.What is the wind speed the steel structure you designed to withstand?
We usually quote the wind load based on 100 ~110 km/h. We can also design for some countries and regions where the wind load is greater than this.
2. I need a steel structure warehouse but I only have the floor area info. Can you help us design it?
We can design according to your floor area and functional uses, and recommend suitable materials according to his budget.
3. How high are your warehouses usually?
The common warehouse we design is around 6m~8m, mainly based on considerations of building structure and economic benefits.
4. We want to ship the anchor bolt in advance, can you arrange it?
We can send the anchor bolts to your container loading place in advance around Foshan/ Guangzhou/ Shenzhen to ship your other goods.
5. For a multi-story building, if the floor plate is made of steel floordeck with rebar and concrete, how thick should the concrete will be?
We usually use 880mm type floor decking, and the thickness of the floor concrete is gen-erally 100~ 150mm.
