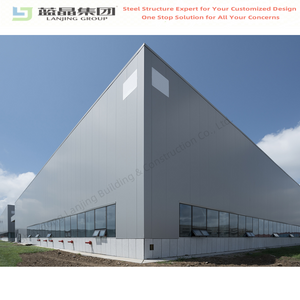

Steel Frame Aircraft Hangar

A steel frame aircraft hangar is a robust and versatile structure designed to house, maintain, and protect aircraft.     These hangars providing a secure environment for aircraft storage and maintenance operations.     The use of steel as the primary construction material offers numerous advantages, including durability, flexibility, and cost-effectiveness.

Scale and Specifications

The scale of a steel frame aircraft hangar can vary significantly depending on its intended use.     Small hangars for private aircraft may span 30 to 60 meters in width and 15 to 30 meters in depth, while larger commercial or military hangars can exceed 100 meters in width and 50 meters in depth.     The height of the hangar is also a critical factor, typically ranging from 10 to 25 meters to accommodate various aircraft types, from small private jets to large commercial airliners.

The structural design of a steel frame aircraft hangar typically includes:

Primary Steel Frame: Composed of high-strength steel columns and beams, the primary frame provides the main structural support.     These components are often prefabricated and assembled on-site to ensure precision and efficiency.

Secondary Steel Members: These include purlins, girts, and bracing elements that support the roof and wall cladding.     They enhance the overall stability and rigidity of the structure.

Roof and Wall Cladding: Typically made from corrugated steel panels or insulated sandwich panels, the cladding provides weather protection and thermal insulation.     The choice of cladding material depends on the specific environmental conditions and insulation requirements.

Doors and Access Points: Large, motorized doors are a critical feature of aircraft hangars.     These doors can be sliding, folding, or telescopic, designed to accommodate the size of the aircraft.     The doors must operate smoothly and reliably, often incorporating advanced automation systems.

Foundation and Flooring: The foundation is designed to support the heavy loads imposed by the steel structure and the aircraft.     The flooring is typically made of reinforced concrete, capable of withstanding the weight and movement of aircraft and ground support equipment.

Design Considerations

Designing a steel frame aircraft hangar involves several critical considerations to ensure functionality, safety, and longevity:

• Aircraft Dimensions and Clearances: The hangar must provide sufficient space for the largest aircraft it will house, including adequate clearance for wings, tails, and ground support equipment.     This includes considering the turning radius and maneuvering space within the hangar.

• Environmental Factors: The design must account for local environmental conditions, such as wind loads, snow loads, seismic activity, and temperature fluctuations.     The structural integrity of the hangar must be able to withstand these forces.

• Fire Safety and Emergency Exits: Aircraft hangars are high-risk areas for fire hazards due to the presence of fuel and electrical systems.     The design must incorporate fire-resistant materials, fire suppression systems, and clearly marked emergency exits.

• Ventilation and Climate Control: Proper ventilation is essential to remove exhaust fumes and maintain air quality.     Climate control systems may be necessary to regulate temperature and humidity, especially in regions with extreme weather conditions.

• Lighting and Electrical Systems: Adequate lighting is crucial for maintenance operations.     The electrical system must be designed to handle the power requirements of lighting, machinery, and aircraft systems.

• Security and Access Control: Given the high value of aircraft and equipment, security measures such as surveillance cameras, access control systems, and perimeter fencing are often integrated into the design.
