Basic Information
| Item | Specification |
| Type 1 | There are two type of prefab house, one of the main difference is that Type 2 (also named T house) cannot see the steel frame from the outer surface while Type 1 (also named K house) can be seen from the outer surface. |
| Type 2 | Type 1 has its own standard size, please refer to the following details. Type 2 can be manufactured according to the customers' specific requirements. |
| Length | Length=NK. (K=1800mm,N is awhole numbe equal to or any bigger than two) |
| Width | 5560mm, 6230mm, 7360mm, 8250mm, adjust accrodlingly. |
| Height | Width=3P,6P,or 9P (P=950mm, 3P is one storey, 6P is two storey and 9P is three storey.) |
| Roof slope | Slope is 1:10 ~ 1:5 |
| Floors | Less than 3 floors |
| Steel frame | Steel columns/pillars, Square steel tube (Q235) 50x50x2.0mm |
| Steel roof truss | |
| Roof and wall panel | 50mm or 75mm thickness Rock Wool (Glass wool and EPS are available) insulation with 0.4mm color steel sheet on both sides, rock wool density 80-120Kg/m3, Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.58w/•k. |
| Edge cover | 0.5mm thickness color steel |
| Window | PVC or aluminum alloy window, white color, 4mm single glazed, with screen. |
| ceiling | 6mm gypsum board, 5mm calcium silicate board, PVC board are available |
| Door | steel door or sandwich panel door, furnished with a cylinder lock with keys |
| Floor | 1.5mm thickness PVC floor leather + 18mm plywood |
| Electric unit | cable, conduit, light, switch, socket, distribution cabinet |
| Sanitary unit | closestool, washbasin, shower, urinal, exhaust fan |
Characters
1.Easily assemble and disassemble.
2.Conveniently Transport.
3.Simple terrain requirements, can be located in hillsides, hills, grasslands, deserts, riversides.

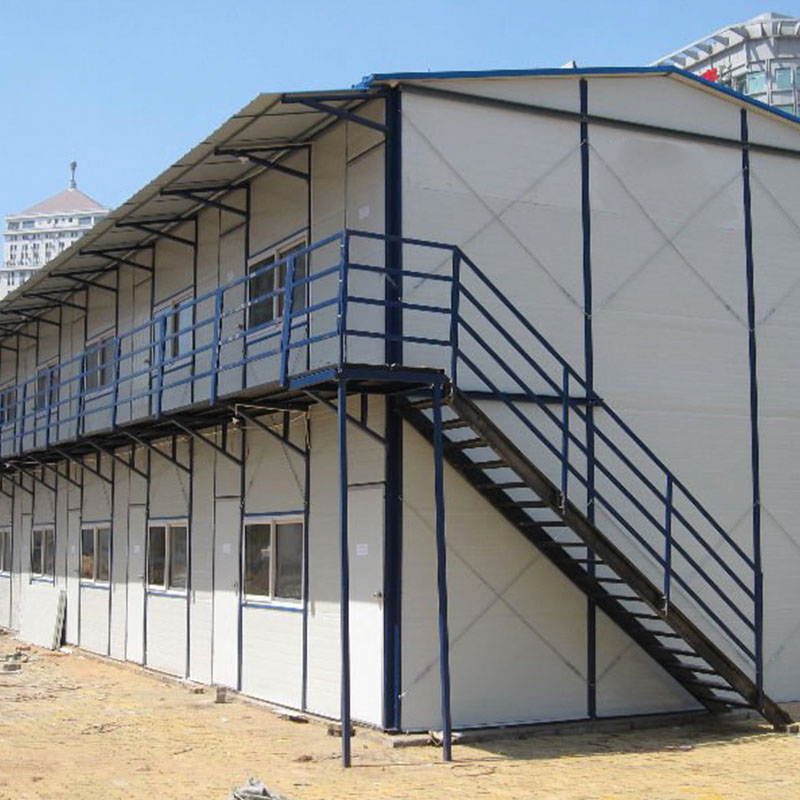

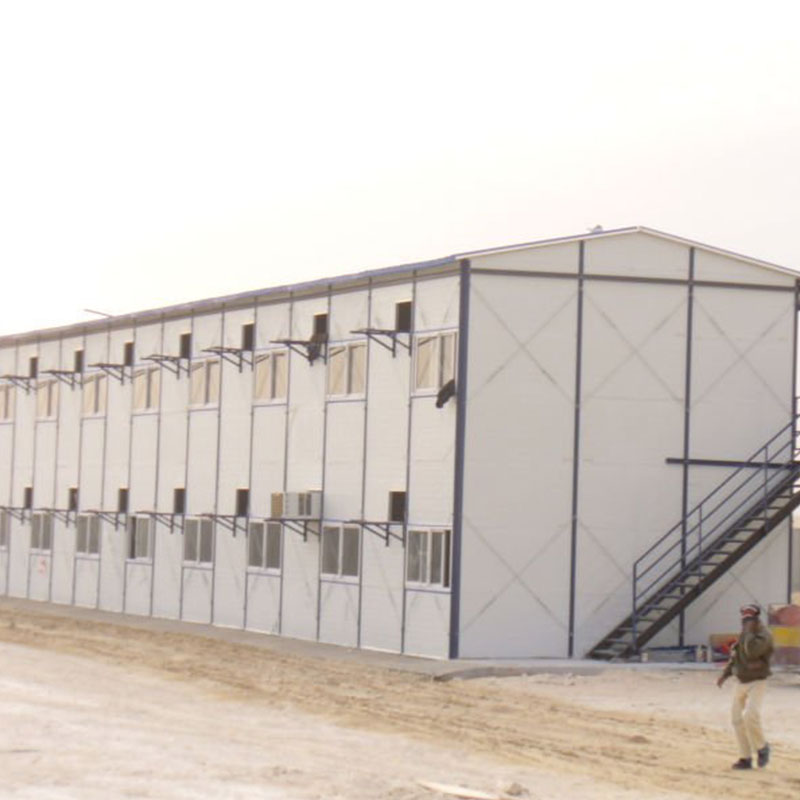

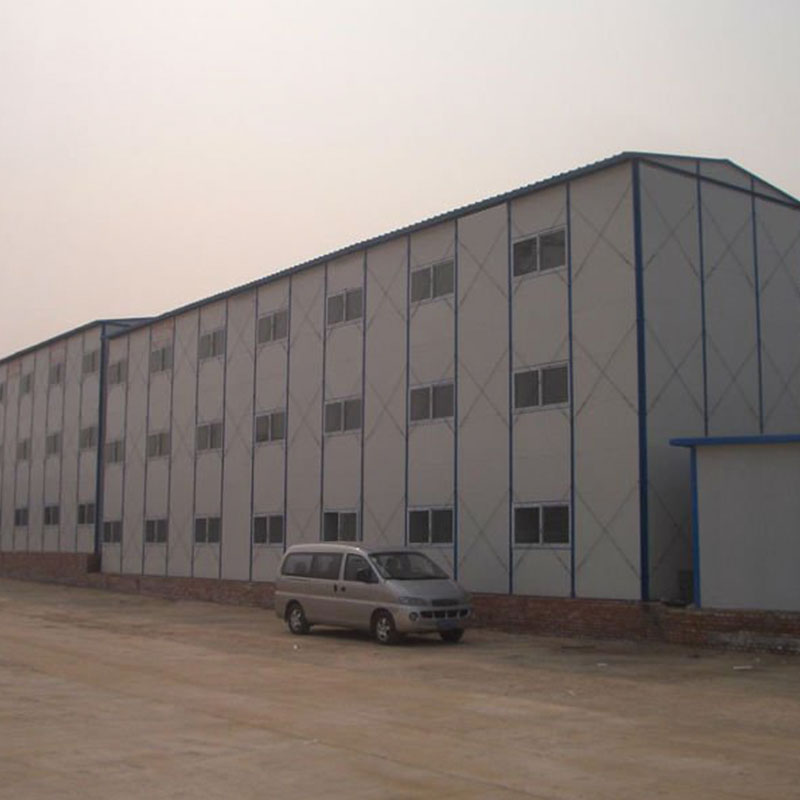

4.The K-Type prefab house is durable and stable, and also with good thermal insulation performance.
5.Its design can be customized, with an exquisite and elegant appearance.
6.Most components of the prefab house are completed in the factory, the site assembly is convenient and fast.
The advantage of the prefab house
1.Recycle using: you can assemble it in site A, then disassemble and install it again on site B, then site C. In such a way, there is no industrial rubbish after you finish the jobs on the site.
2.Low cost. The steel structure is much lower in cost than the traditional building.
3.Quickly installation. In the normal, 6 skilled person team can install 150 sq.m house every day.
4.Safety: the prefab house can resistance a 7-grade earthquake and around 100km/H wind.
