Basic Information
| 1 | ground channel | C shape steel | C80x40x15x2.0 |
| 2 | column | Double C shape steel | 2C80x40x15x2.0 welded |
| 3 | Beam for second floor | Steel frame | 2C80x40x15x2.0\L40x4 welded |
| 4 | Sub-beam for second floor | C shape steel | C80x40x15x2.0 |
| 5 | Purlin for roof | Corner steel | L40x4 |
| 6 | Bracing for roof | Corner steel | L40x4 |
| 7 | Bracing for aisle and rain shelter | C shape steel | C80x40x15x2.0 welded |
| 8 | Bracing between the columns | Round steel\bolt | & phi; 8 |
| 9 | Step board | Steel board | t=3.0mm |
| 10 | stair | Steel stairs | |
| 11 | Wall panel | V950 EPS sandwich panel | 50mm thickness, steel plate: 0.3mm |
| 12 | Partition panel | V950 EPS sandwich panel | 50mm thickness, steel plate: 0.3mm |
| 13 | Roof panel | V950 EPS sandwich panel | 50mm thickness, steel plate: 0.3mm |
| 14 | Floor for second storey | plywood | 18mm thickness |
| 15 | Rain shelter | One layer color steel plate | 0.45mm thickness |
| 16 | windows | PVC sliding windows | 0.93mx1.000m |
| 17 | door | Sandwich panel door | 0.93mx2.000m |
| 18 | Entensive and common bolt | Different dimension | |
| No. | Width | Length | Height | ||
| 1 | 3K | nK | 3P | 6P | 9P |
| 2 | 4K | nK | 3P | 6P | 9P |
| 3 | 5K | nK | 3P | 6P | |
| Note : K = 1820mm, P = 950mm n: can be customized | |||||
Installation Steps
1.Measure the size (inner width 5.46m), put the ground beam by expansion screw.
2.Install the column and floor beam.
3.Install the outside wall panel of the first floor and Mgo plate and stairs of the second floor.
4.Install the purlin and surrounding beam.
5.Install the doors, windows, and roof panel.
Application

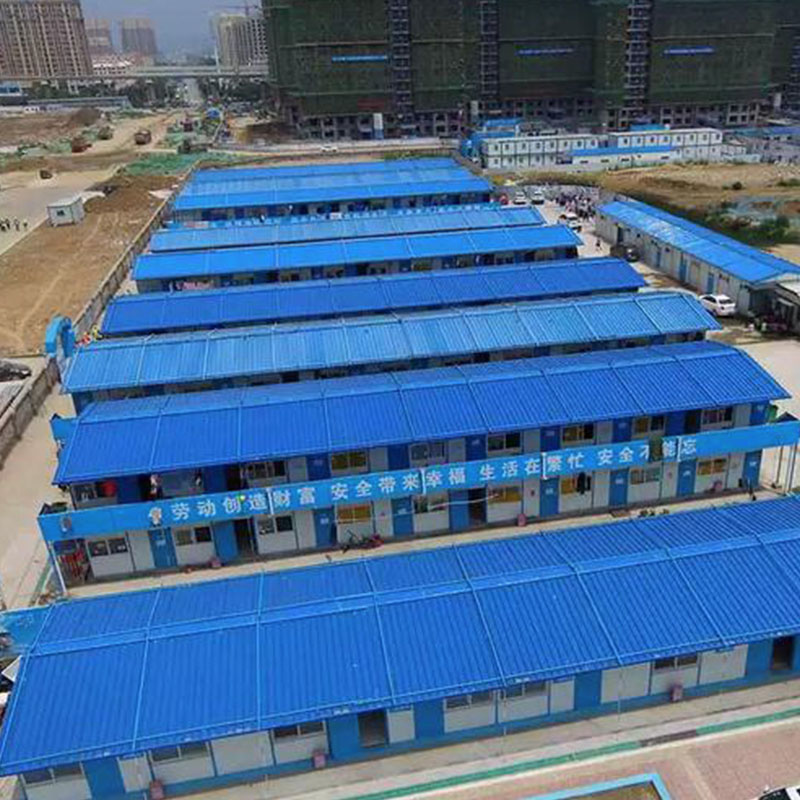

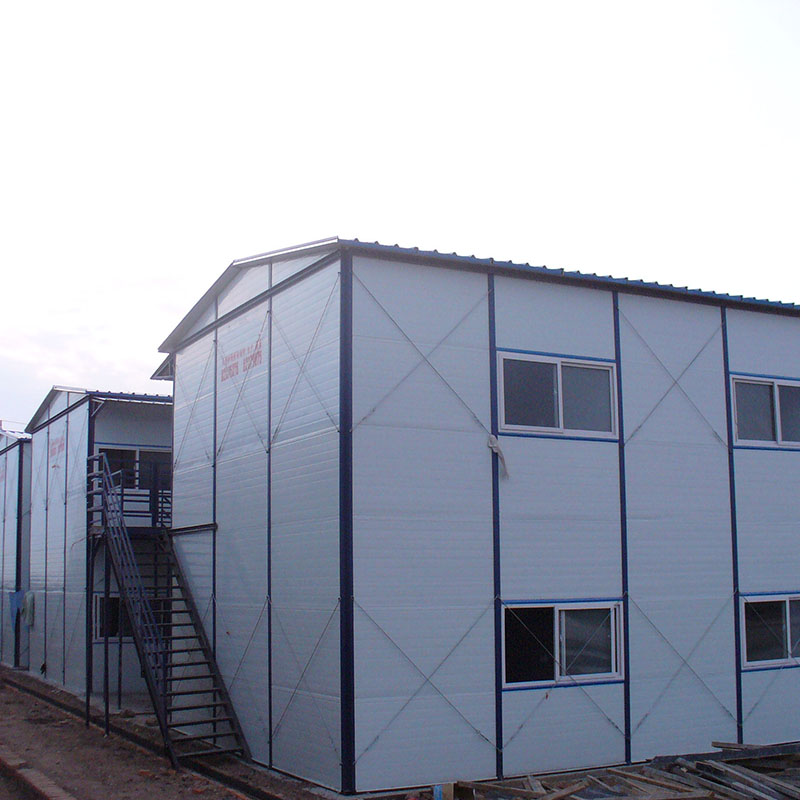

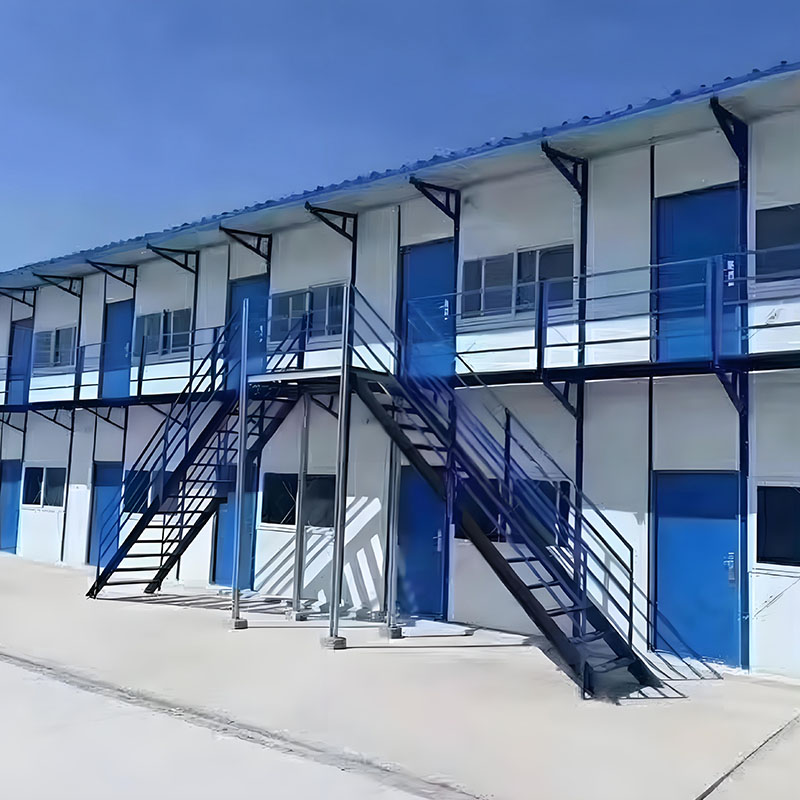

This K prefabricated house is the most economic design & is commonly used in construction sites, oil sites, mining sites as workers' quarters, site offices, also used for solider camps, government projects & school projects as labor accommodation, solider accommodation, employee accommodation, student dormitory, teacher`s office, engineers office, site offices, canteen, clinic, laundry room etc.
Sometimes used as rental houses, refugee houses or low income family housing, which are durable and easy to set up. Therefore, the K house is also known as the Disaster Relief House or Low Income Family House.
